Product Description
First enter the clock setting screen through the “CLOCK” button, and adjust the timer clock to the current actual time through the “R/L” and “+/-” button (press the OK key after setting).Then enter the timing setting screen through the “SET” button, and set the timing time required by the user through the ”R/L” and “+/-” button. After setting a group, you can press “Next” button to enter the setting screen of the next group (you cannot press the “OK” button at this time), up to 8 groups of timing, after setting all timing time, press the “OK” button to start , very simple.
The function of the “ON/OFF” button is to change the current output state of the timer jack. For example, the current jack of the timer is on, if the user wants to change the current output state to off, you need to press the “ON/OFF” button continuously to change the current state, after it becomes “OFF”, then press the “OK” button. At this time, the timer’s timing function will not be affected, and it will continue to execute as planned.
There is a small detail to note here, after the timer has set the timing, it will not automatically determine whether the current jack should be on or off, it will only default to the output state before the set. If the output state of the jack does not correspond to the set time, you can change the output state to the correct output state through the “ON/OFF” button and then press the “OK” button. This feature is to prevent some users from forgetting that someone is operating on the device, at this time, if the setting is changed and the power is automatically turned on and off, it will cause an accident, so our design is for safety.
Specifications:
Condition: 1% Brand New Shell Material: ABS Color: Shown as picture Plug Type: EU Plug Voltage: AC 22V/5Hz Max Load Power: 22W Max Load Current: 1A Setting Time Range: 1minute ~ 7 days Operating temperature:-1℃ ~ +4℃ Accuracy: +/-1minute per month Built-in Battery: Ni-Mh 1.2V 8mAH Size(L x W x T): Approx. 11 x 8 x 6cm / 4.3 x 3.1 x 2.4inch (Shown as Picture) Weight: Approx. 15g
Product Installation
1. Press the program button and release. The first on setting can be made now.
2. Press week button to set the day or blocks of days. Set the time by pressing the hour button and then min button.
3. Press the prog button again to finish the first on setting and enter into the first off setting. By repeating 2 to make the first off setting.
4. Press the prog button again to finish the first off setting and enter into the 2 on setting. Repeat 2 and 3 to program remaining settings.
5. After completing setting, press the clock button and the timer is ready to operate.
he indicator light corresponds to the current state of the screen, if the timer jack has electrical output, the current status of the screen is displayed as “ON” and the indicator light is on. If there is no electrical output in the jack, the current status of the screen is displayed as “OFF” and the indicator light is off.
Comfort Fitting in All Switches
Made for india and built for safety our timer switch comfortably fits in to the most commonly used plug points in indian homes.
Digital Programmable Timer for Charging

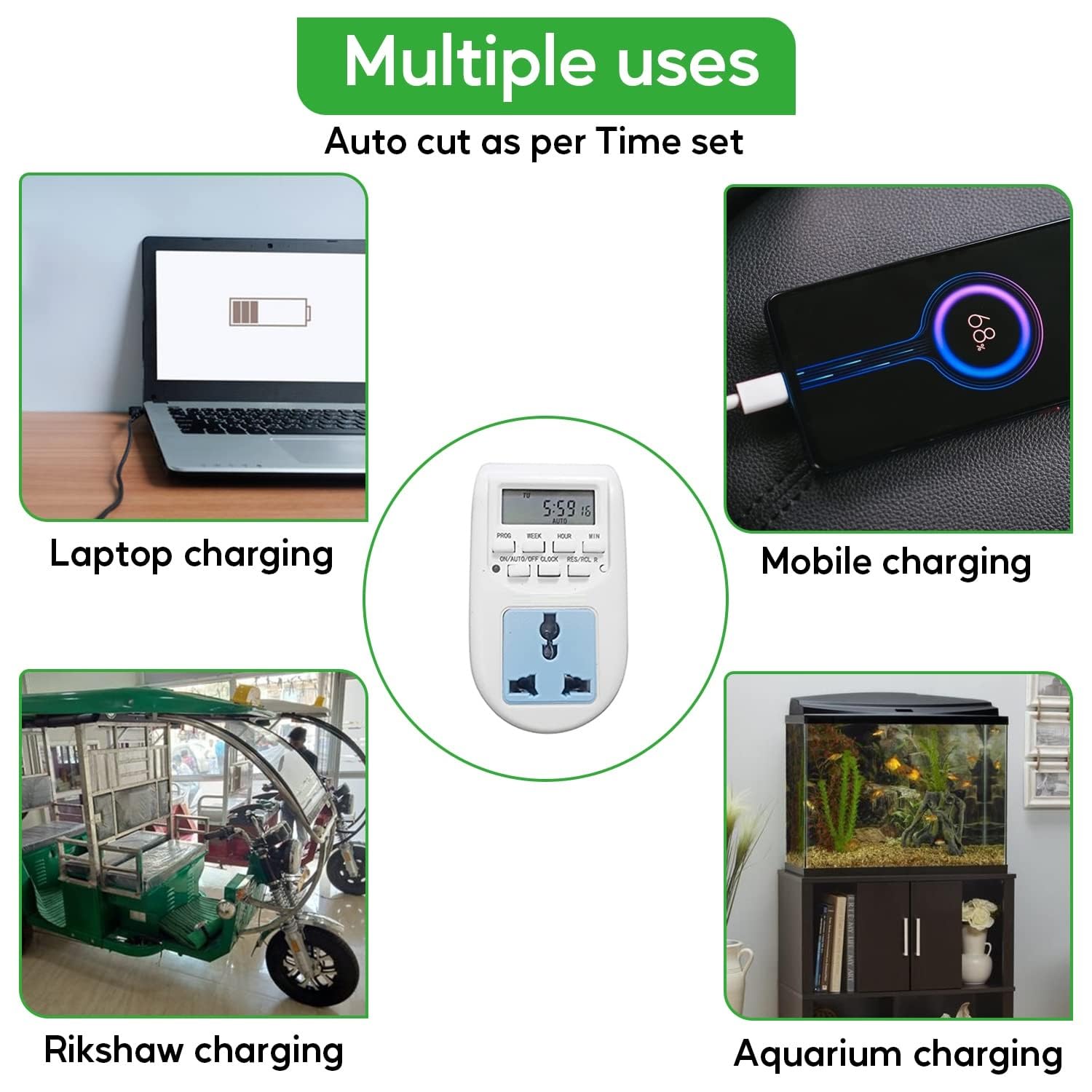

The Device finds application in any of Switching Electrical Applications like Lighting Control , Appliance Charge Controls , Aquarium pump & light Control , Routers , Mobile Charger , irrigation Hydroponics etc. This is an intelligent Automation Genius Ideal for DIY Users & Home Automation . Unlike Other Automation devices this is a standalone device independent of wireless networks .It Connects hassle free just by Pluging into any legacy socket commonly available everywhere .
✅【𝐏𝐫𝐨𝐝𝐮𝐜𝐭 𝐃𝐞𝐭𝐚𝐢𝐥𝐬】: Pack of 1 Energy Saving Socket Timer Switch | Voltage: 230V | Material: Plastic | Pin Type: 3 Pin | Display: LCD | Connector Type: Plug In | Colour: White | Voltage: | Special Feature: Digital Programmable, 24×7 Countdown Control| Digital Programmable Timer Socket Plug with Manual Programming & Auto On/Off Feature Ensuring Your Devices Only Operate When Necessary.
✅【𝐄𝐧𝐞𝐫𝐠𝐲 𝐒𝐚𝐯𝐢𝐧𝐠 𝐒𝐨𝐜𝐤𝐞𝐭 𝐰𝐢𝐭𝐡 𝐌𝐚𝐧𝐮𝐚𝐥 𝐏𝐫𝐨𝐠𝐫𝐚𝐦𝐦𝐢𝐧𝐠】: Digital programmable energy-saving socket allows easy setup for preferred operating times of your device with manual buttons for which saves energy consumption & and lowers your utility bills without sacrificing convenience or performance.
✅【𝐓𝐢𝐦𝐞𝐫 𝐂𝐨𝐮𝐧𝐭𝐝𝐨𝐰𝐧 & 𝐀𝐮𝐭𝐨𝐦𝐚𝐭𝐢𝐜 𝐂𝐨𝐧𝐯𝐞𝐧𝐢𝐞𝐧𝐜𝐞】: Digital Timer Electric Switch Plug allows seamlessly set countdowns with the auto on/off feature enhanced energy savings for cooking sessions, device charging allows your devices to power up only when needed ensuring convenience & efficiency in managing your energy usage.
✅【𝐃𝐮𝐫𝐚𝐛𝐥𝐞 𝐂𝐨𝐧𝐬𝐭𝐫𝐮𝐜𝐭𝐢𝐨𝐧 𝐁𝐮𝐢𝐥𝐭 𝐭𝐨 𝐋𝐚𝐬𝐭】: This electronic timer switch made from strong material with a sleek white plastic ensures longevity & seamlessly blends into any home or office decor, enhancing aesthetics while promoting functionality.
✅【𝐄𝐚𝐬𝐲 𝐒𝐞𝐭𝐮𝐩 & 𝐕𝐞𝐫𝐬𝐚𝐭𝐢𝐥𝐞 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲】: With its user-friendly design, simply plug the timer into your existing wall outlet and connect your device. Moreover, this socket timer electronic plug compatible with a wide range of devices such as fridges, heaters, and fans thus providing flexibility and convenience for your diverse household needs.
